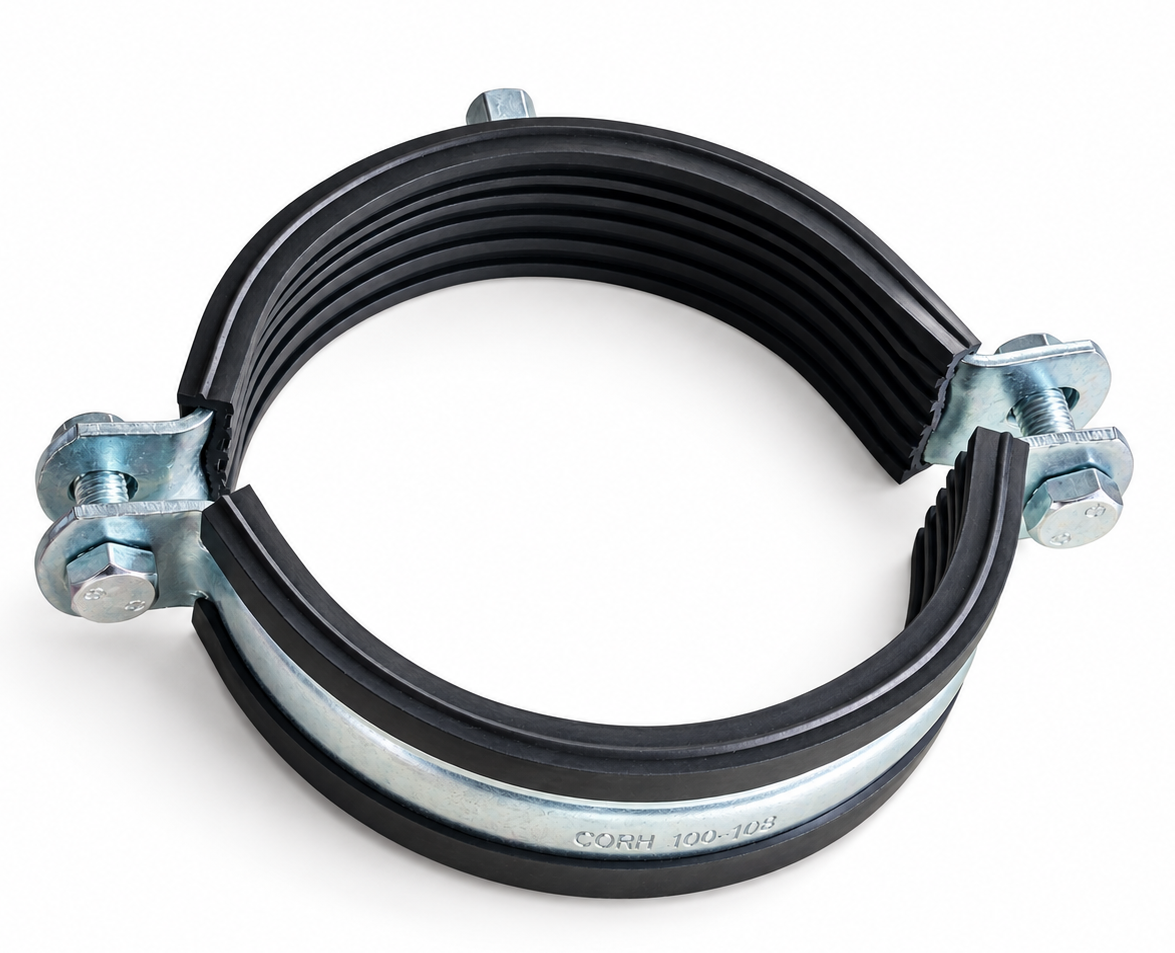

KRI pipe clamp with rubber lining
KRI pipe clamp with rubber lining
Ricerca nel catalogo
Search in the catalogue
Technical features and advantages
- Clamp with a single screw, pre-assembled
- Material: steel
- Galvanized
- Induction welded M8 nut
- EPDM rubber
GammaRange
AllegatiAttachments
GammaRange
Dati tecnici
Technical Data
| Code | D [mm] | D ["] | G | B [mm] | H [mm] | b x s [mm] | Working load [N] | Aggiungi alla WishlistAdd to Wishlist |
|---|---|---|---|---|---|---|---|---|
| 580014 | 12 - 14 | 1/4 | M8 | 48 | 35 | 20 x 1,2 | 400 | AggiungiAdd |
| 580018 | 15 - 18 | 3/8 | M8 | 50 | 37 | 20 x 1,2 | 400 | AggiungiAdd |
| 580021 | 20 - 23 | 1/2 | M8 | 53 | 37 | 20 x 1,2 | 400 | AggiungiAdd |
| 580027 | 25 - 28 | 3/4 | M8 | 58 | 48 | 20 x 1,2 | 400 | AggiungiAdd |
| 580034 | 32 - 35 | 1 | M8 | 66 | 53 | 20 x 1,2 | 400 | AggiungiAdd |
| 580042 | 40 - 43 | 1 1/4 | M8 | 73 | 63 | 20 x 1,2 | 400 | AggiungiAdd |
| 580048 | 44 - 49 | 1 1/2 | M8 | 79 | 67 | 20 x 1,2 | 400 | AggiungiAdd |
| 580054 | 50 - 55 | - | M8 | 87 | 79 | 20 x 1,2 | 400 | AggiungiAdd |
| 580060 | 57 - 61 | 2 | M8 | 95 | 87 | 20 x 1,2 | 400 | AggiungiAdd |
AllegatiAttachments
1 attachment:
-
Technical data sheet
120 KB
